350w 370w 380w 400w 5bb 9bb Mono 72cells solar panel
Mono solar modules are with high-efficiency and high-reliability, the maximum power can reach as high as 350W, even 360W, with tolerance 0-3%. And they can perform better in lower temperature, weaker sun circumstance. Mono solar modules can effectively protect customer’s generating capacity and investment income. Therefore, 350W mono solar modules are mostly used for large and small on-grid or off-grid solar power stations.
Electrical Characteristics
Power measurement tolerance: +/-3%
Maximum power (Pmax): 350W
Maximum Power Voltage (Vmp): 37.15V
Maximum Power Current (Imp): 9.45A
Open-circuit Voltage (Voc): 44.80V
Short-circuit Current (Isc): 9.92A
Cell efficiency: 20.35%
Module Efficiency: 18.05%
Mechanical Characteristics
Cell Type Mono-crystalline 156.75×156.75 mm (6 inches)
Cells number: 72pcs (6×12)

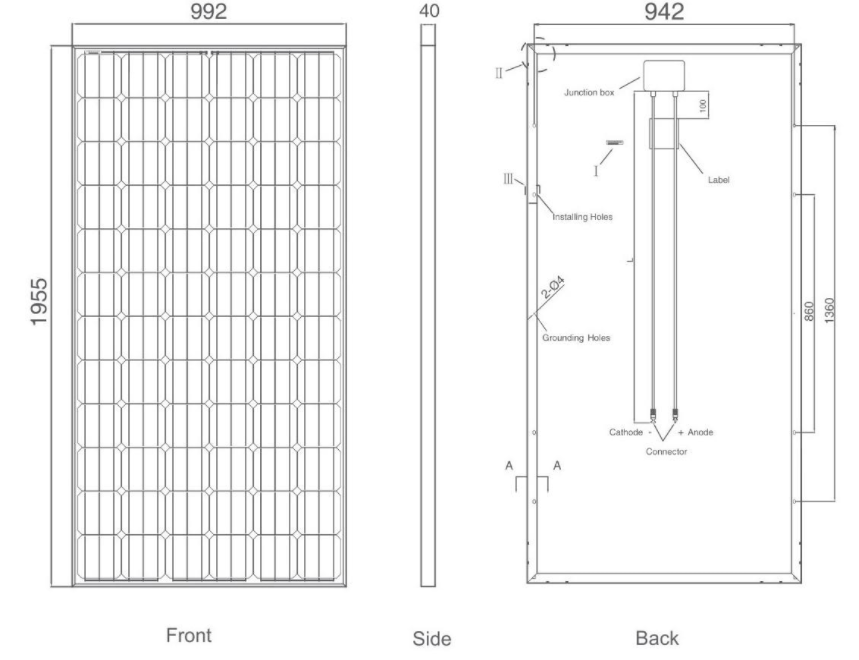

Dimensions 1955 x 992 x 40 mm
Glass: Low lron, Tempered Glass, High Transmission, thickness 3.2mm or 4.0mm
Backsheet (color): white, black or as per your request
Frame(material/color): Anodized Aluminum Alloy / silver, black,golden or as per your request
Junction box: ≧IP65
Cables/Plug Connector: Diameter 4mm2, length 900mm/MC4 or MC4 compatible
Thermal Characteristics
Nominal Operating Cell Temperature NOCT 45oC±2oC
Temperature Coefficient of Voc -0.32%/oC
Temperature Coefficient of Isc 0.05%/oC
Temperature Coefficient of Pmax -0.40%/oC
Temperature Coefficient of Pmax -0.40%/oC
Operating Conditions
Maximum System Voltage (VDC) 1000V
Maximum Series Fuse 15A
Operating Temperature -40oC~+85oC
(* Above Values at Standard Test Conditions STC(AM1.5, Irradiance of 1000W/m2, Cell Temperature 25oC)
