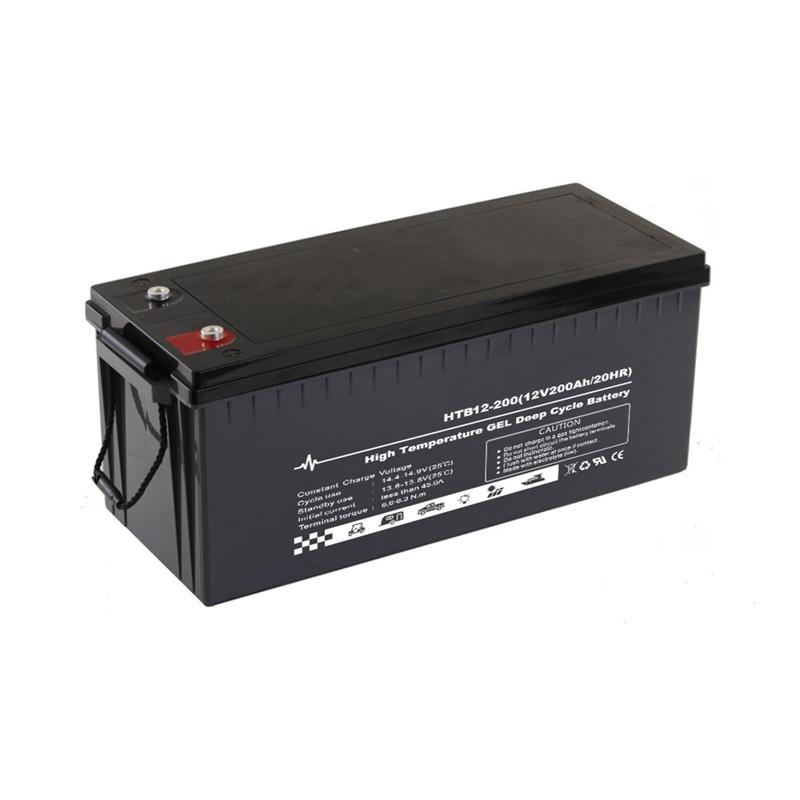

12v 200 ah High-Temp Long Life Deep Cycle GEL Battery
Applications
➢ BTS Stations
➢ Solar & Wind energy system
➢ UPS system
➢ Telecom systems
➢ Wheel chair, Golf Car
General Features
✓Able to operate at 40-60°C ✓ DOD 50% 1500 times Cycles
✓ Integrated design to ensure the best Uniformity and reliability
✓ Long life and high stability under high temp. environment (no air-con needed)
✓ Use super-C additives: Deep discharge recovery capability
IEC 60896-21/22
JIS C8704
IEC61427
BS6290 part4
GB/T 19638
CE/ISO

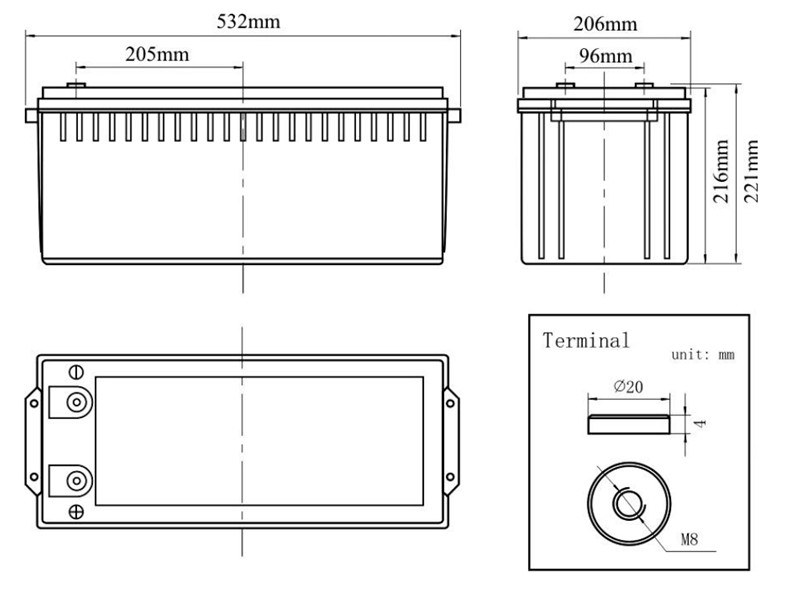

Dimensions & Weight
| Length(mm) | 532±1 |
| Width(mm) | 206±1 |
| Height(mm) | 215±1 |
| Total Height(mm) | 219±1 |
| Weight(kg) | 58.6±3% |
Technical Specifications
|
Nominal Voltage |
12V (6 cells per unit) |
|||
| Design Floating Life @25℃ |
20 Years |
|||
| Nominal Capacity @25℃(20 hour rate@10.0A,10.8V) |
200Ah |
|||
|
Capacity @25℃ |
10hour rate (18.0A,10.8V)
5 hour rate (31.8A,10.5V) 1 hour rate (115.5A,9.6V) |
180Ah 159Ah 115.5Ah |
||
| Internal Resistance | Full Charged Battery@25℃ |
≤3.0mΩ |
||
|
Ambient Temperature |
Discharge Charge Storage |
-25℃~60℃
-25℃~60℃ -25℃~60℃ |
||
| Max.Discharge Current@25℃ |
1200A(5s) |
|||
|
Capacity affected by Temperature (10 hour ) |
40℃ 25℃ 0℃ -15℃ |
108% 100% 90% 70% |
||
| Self-Discharge@25℃ per Month |
3% |
|||
|
Charge (Constant Voltage) @25℃ |
Standby Use | Initial Charging Current Less than 45.0A Voltage 13.6-13.8V | ||
| Cycle Use |
Initial Charging Current Less than 45.0A Voltage 14.4-14.9V |
|||
Battery Discharge Table
Discharge Constant Current per Cell (Amperes at 25°C)
|
F.V/Time |
15min |
30min |
45min |
1h |
2h |
3h |
5h |
8h |
10h |
20h |
100h |
|
1.60V |
312.4 |
185.9 |
132.0 |
115.5 |
70.5 |
49.5 |
33.7 |
22.2 |
19.8 |
10.8 |
2.40 |
|
1.65V |
306.7 |
182.5 |
129.6 |
113.4 |
69.2 |
48.6 |
33.0 |
21.8 |
19.4 |
10.6 |
2.35 |
|
1.70V |
301.0 |
179.1 |
127.2 |
111.3 |
67.9 |
47.7 |
32.4 |
21.4 |
19.1 |
10.4 |
2.31 |
|
1.75V |
295.4 |
175.8 |
124.8 |
109.2 |
66.7 |
46.8 |
31.8 |
21.0 |
18.7 |
10.2 |
2.26 |
|
1.80V |
284.0 |
169.0 |
120.0 |
105.0 |
64.1 |
45.0 |
30.6 |
20.2 |
18.0 |
10.0 |
2.22 |
Discharge Constant Power per Cell (Watts at 25°C)
|
F.V/Time |
15min |
30min | 45min |
1h |
2h |
3h |
5h |
8h |
10h |
20h |
100h |
|
1.60V |
535.5 |
357.9 | 254.1 |
222.3 |
135.7 |
95.3 |
64.8 |
42.8 |
38.1 |
20.8 |
4.62 |
|
1.65V |
526.5 |
351.4 | 249.5 |
218.3 |
133.3 |
93.6 |
63.6 |
42.0 |
37.4 |
20.4 |
4.53 |
|
1.70V |
517.5 |
344.8 | 244.9 |
214.3 |
130.8 |
91.8 |
62.4 |
41.2 |
36.7 |
20.0 |
4.44 |
|
1.75V |
508.5 |
338.3 | 240.2 |
210.2 |
128.3 |
90.1 |
61.3 |
40.4 |
36.0 |
19.6 |
4.36 |
|
1.80V |
490.5 |
325.3 | 231.0 |
202.1 |
123.4 |
86.6 |
58.9 |
38.9 |
34.7 |
19.3 |
4.27 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Battery Construction
|
Component |
Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal |
Separator |
Electrolyte |
Pillar seal |
|
Thick high |
Balanced |
Fire |
Flame Si-Rubber and aging resistance |
Advanced |
Two |
|||
|
Sn low Ca |
Pb-Ca grid |
resistanc |
Female |
PVC /AGM |
layers |
|||
|
Features |
grid with |
for improved |
e ABS |
Copper |
separator for |
Silicon Gel |
epoxy |
|
|
special |
recombinati |
(UL94-V0 |
Insert M8 |
high pressure |
resin seal |
|||
|
paste |
on efficiency |
optional) |
cell design |
Add: Building Evolution, Xingdong industry Park, NO.61, Liuxian 2nd Road, Baoan, Shenzhen, China. Tel: +86-755-29123661 Email: Sales@CSBattery.cn, Support@CSBattery.cn
Website: www.CSBattery.cn
