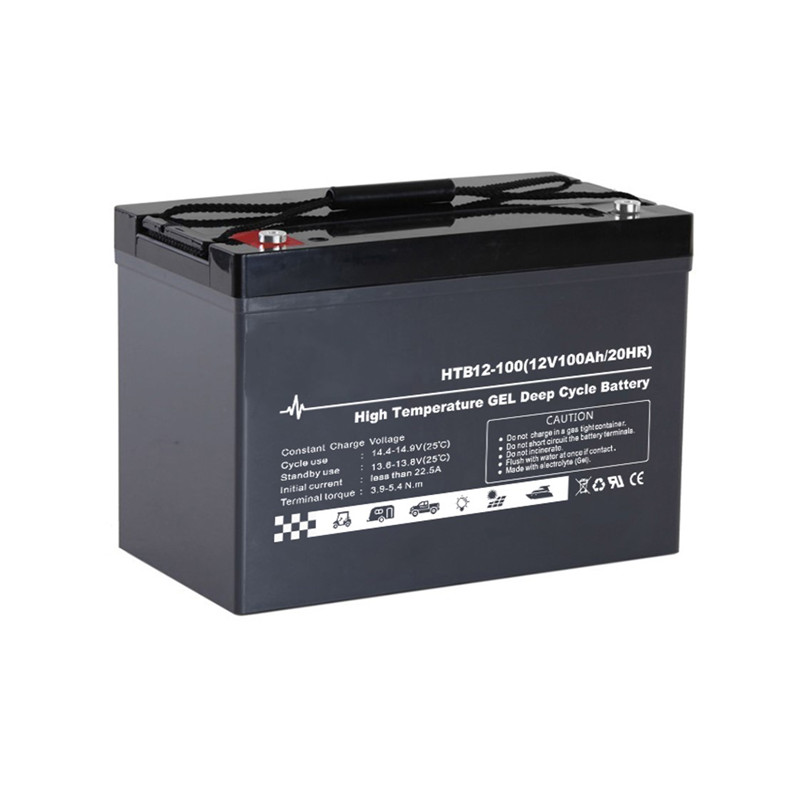

12v 100ah High-Temp Long Life Deep Cycle GEL Battery
Applications
➢ BTS Stations
➢ Solar & Wind energy system
➢ UPS system
➢ Telecom systems
➢ Wheel chair, Golf Car
General Features
✓Able to operate at 40-60°C ✓ DOD 50% 1500 times Cycles
✓ Integrated design to ensure the best Uniformity and reliability
✓ Long life and high stability under high temp. environment (no air-con needed)
✓ Use super-C additives: Deep discharge recovery capability
IEC 60896-21/22
JIS C8704
IEC61427
BS6290 part4
GB/T 19638
CE/ISO

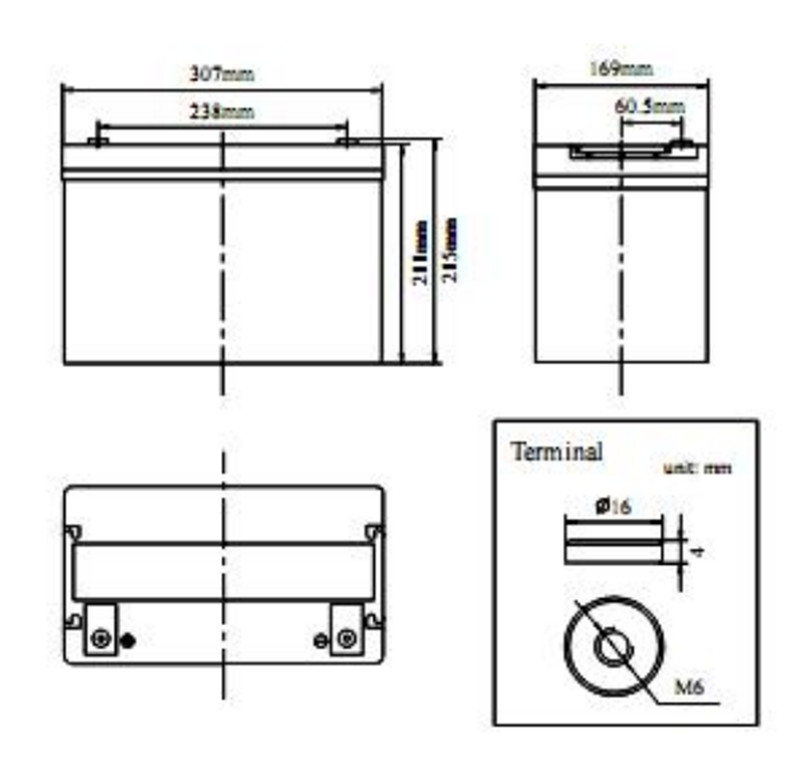

Dimensions & Weight
| Length(mm) | 307±1 |
| Width(mm) | 169±1 |
| Height(mm) | 211±1 |
| Total Height(mm) | 216±1 |
| Weight(kg) | 30.5±3% |
Technical Specifications
|
Nominal Voltage |
12V (6 cells per unit) |
|||
| Design Floating Life @25℃ |
20 Years |
|||
| Nominal Capacity @25℃(20 hour rate@5.0A,10.8V) |
100Ah |
|||
|
Capacity @25℃ |
10hour rate (9.0A,10.8V)
5 hour rate (15.9A,10.5V) 1 hour rate (55.6A,9.6V) |
90Ah 79.5Ah 55.6Ah |
||
| Internal Resistance | Full Charged Battery@25℃ |
≤5.3mΩ |
||
|
Ambient Temperature |
Discharge Charge Storage |
-25℃~60℃
-25℃~60℃ -25℃~60℃ |
||
| Max.Discharge Current@25℃ |
540A(5s) |
|||
|
Capacity affected by Temperature (10 hour ) |
40℃ 25℃ 0℃ -15℃ |
108% 100% 90% 70% |
||
| Self-Discharge@25℃ per Month |
3% |
|||
|
Charge (Constant Voltage) @25℃ |
Standby Use | Initial Charging Current Less than 22.5A Voltage 13.6-13.8V | ||
| Cycle Use |
Initial Charging Current Less than 22.5A Voltage 14.4-14.9V |
|||

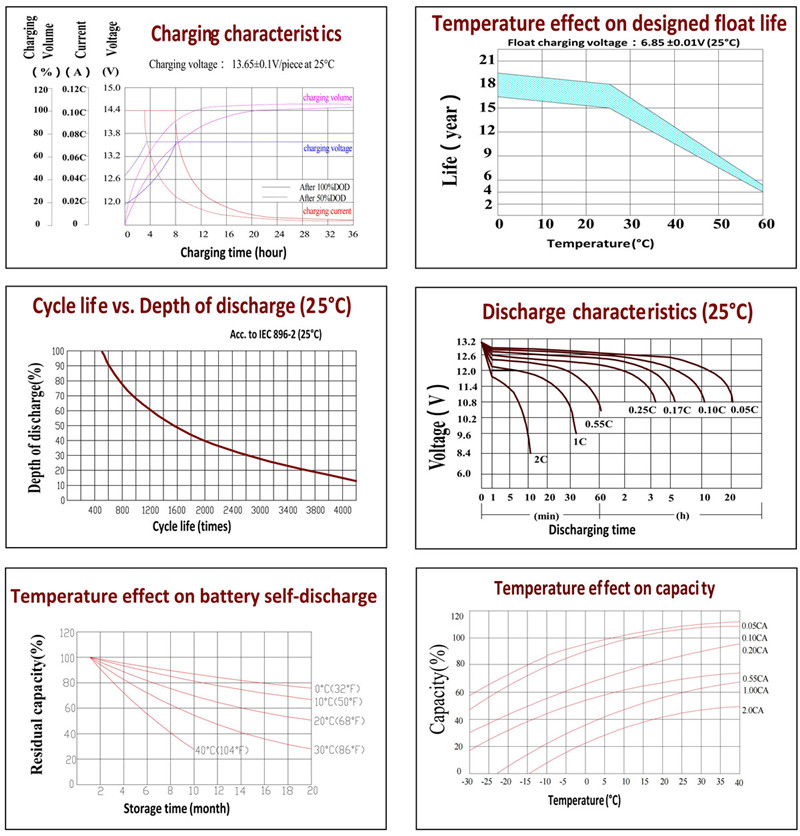

Battery Discharge Table
Discharge Constant Current per Cell (Amperes at 25°C)
|
F.V/Time |
15min |
30min |
45min |
1h |
2h |
3h |
5h |
8h |
10h |
20h |
100h |
|
1.60V |
128.7 |
82.0 |
60.5 |
55.6 |
35.3 |
24.8 |
16.8 |
11.1 |
9.9 |
5.4 |
1.20 |
|
1.65V |
126.4 |
80.5 |
59.4 |
54.5 |
34.6 |
24.3 |
16.5 |
10.9 |
9.7 |
5.3 |
1.18 |
|
1.70V |
124.0 |
79.0 |
58.3 |
53.5 |
34.0 |
23.9 |
16.2 |
10.7 |
9.5 |
5.2 |
1.15 |
|
1.75V |
121.7 |
77.5 |
57.2 |
52.5 |
33.3 |
23.4 |
15.9 |
10.5 |
9.4 |
5.1 |
1.13 |
|
1.80V |
117.0 |
74.5 |
55.0 |
50.5 |
32.1 |
22.5 |
15.3 |
10.1 |
9.0 |
5.0 |
1.11 |
Discharge Constant Power per Cell (Watts at 25°C)
|
F.V/Time |
15min |
30min | 45min |
1h |
2h |
3h |
5h |
8h |
10h | 20h |
100h |
|
1.60V |
247.7 |
157.8 | 116.5 |
106.9 |
67.9 |
47.6 |
32.4 |
21.4 |
19.1 | 10.4 |
2.31 |
|
1.65V |
243.2 |
154.9 | 114.3 |
105.0 |
66.6 |
46.8 |
31.8 |
21.0 |
18.7 | 10.2 |
2.26 |
|
1.70V |
238.7 |
152.0 | 112.2 |
103.0 |
65.4 |
45.9 |
31.2 |
20.6 |
18.4 | 10.0 |
2.22 |
|
1.75V |
234.2 |
149.1 | 110.1 |
101.1 |
64.2 |
45.0 |
30.6 |
20.2 |
18.0 | 9.8 |
2.18 |
|
1.80V |
225.2 |
143.4 | 105.9 |
97.2 |
61.7 |
43.3 |
29.5 |
19.4 |
17.3 | 9.6 |
2.14 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Battery Construction
|
Component |
Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal |
Separator |
Electrolyte |
Pillar seal |
|
Thick high |
Balanced |
Fire |
Flame Si-Rubber and aging resistance |
Advanced |
Two |
|||
|
Sn low Ca |
Pb-Ca grid |
resistanc |
Female |
PVC /AGM |
layers |
|||
|
Features |
grid with |
for improved |
e ABS |
Copper |
separator for |
Silicon Gel |
epoxy |
|
|
special |
recombinati |
(UL94-V0 |
Insert M8 |
high pressure |
resin seal |
|||
|
paste |
on efficiency |
optional) |
cell design |
Add: Building Evolution, Xingdong industry Park, NO.61, Liuxian 2nd Road, Baoan, Shenzhen, China. Tel: +86-755-29123661 Email: Sales@CSBattery.cn, Support@CSBattery.cn
Website: www.CSBattery.cn
