➢ Telecom Control Equipment
➢ UPS systems, Inverter
➢ Power Equipment
➢ Solar & Wind
➢ Emergency Power Systems

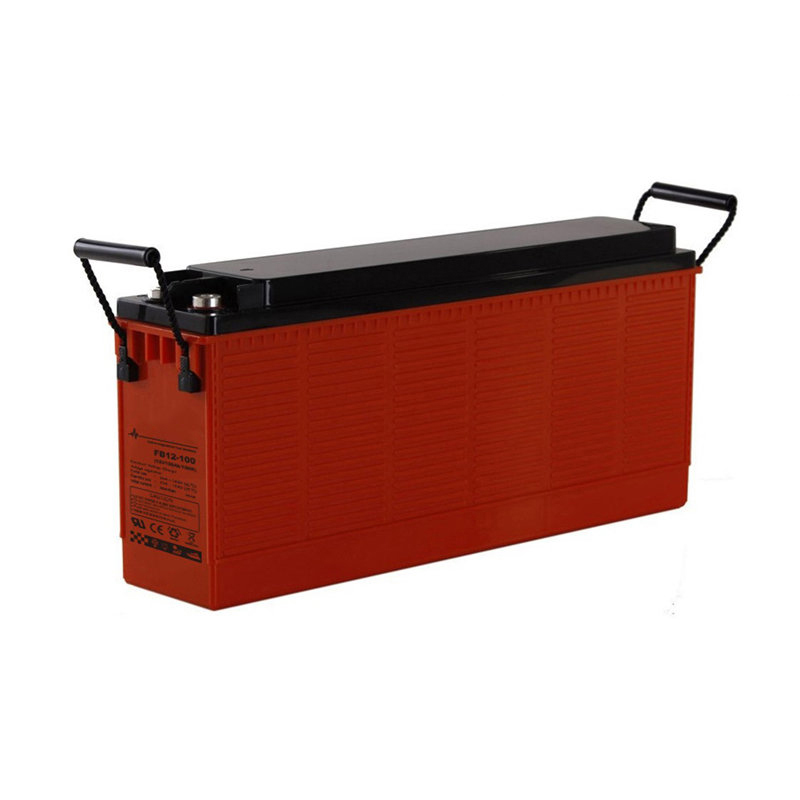

✓ Advanced AGM technology, and Maintenance-free operation;
✓ Front access terminal with standard width for 19” and 23” ETSI racks;
✓ Fire resistance ABS container;
✓ Long float service life 10years;
✓ Low self discharge <3%.
COMPLIED STANDARDS
IEC 60896-21/22
JIS C8704 YD/T799
BS6290 part4
GB/T 19638 CE

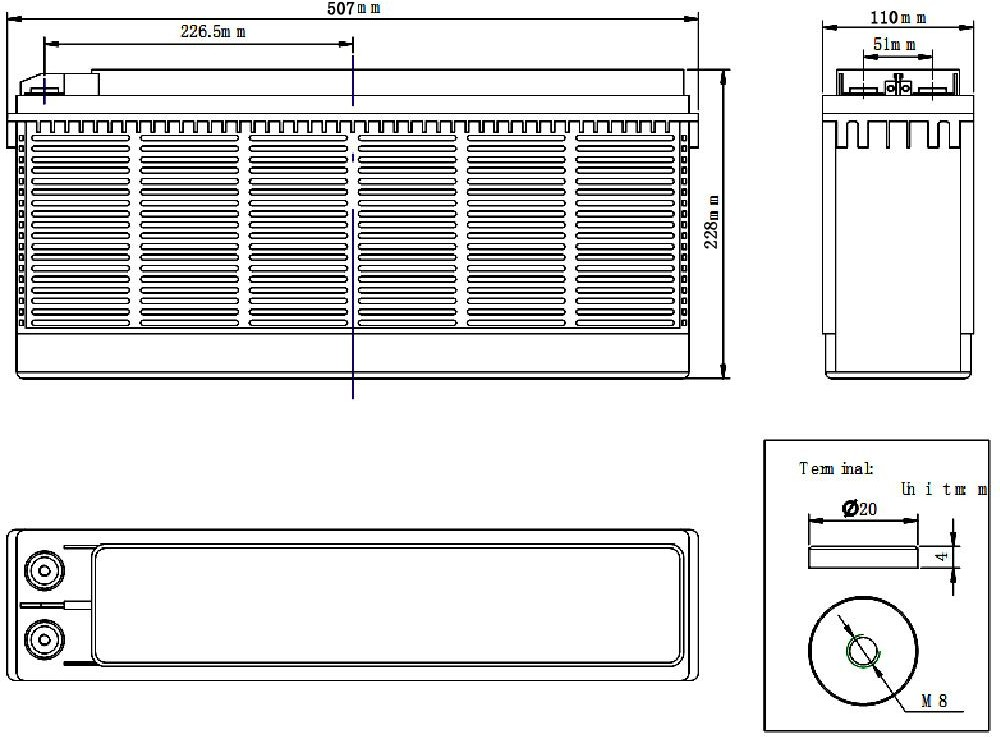

Length(mm) | 507±1 |
Width(mm) | 110±1 |
Height(mm) | 223±1 |
Total Height(mm) | 228±1 |
Weight(kg) | 29.4±3% |
Nominal Voltage | 12V(6 cells per unit) | |||
Design Floating Life @25℃ | 10 Years | |||
Nominal Capacity @25℃(10 hour rate@10.0A,10.8V) | 100Ah | |||
Capacity @25℃ | 20hour rate (5.3A,10.8V)5 hour rate (17.6A,10.5V) 1 hour rate (63.8A,9.6V) | 106Ah88.0Ah63.8Ah | ||
Internal Resistance | Full Charged Battery@25℃ | ≤5.8mΩ | ||
Ambient Temperature | Discharge ChargeStorage | -15℃~45℃-15℃~45℃-15℃~45℃ | ||
Max.Discharge Current@25℃ | 600A(5s) | |||
Capacity affected by Temperature(10 hour ) | 40℃25℃0℃
-15℃ |
105%100%85%
65% |
||
Self-Discharge@25℃ per Month | 3% | |||
Charge (Constant Voltage) @25℃ | Standby Use | Initial Charging Current Less than 25A Voltage 13.6-13.8V | ||
Cycle Use | Initial Charging Current Less than 25AVoltage 14.4-14.9V |
Discharge Constant Current per Cell (Amperes at 25°C)
F.V/Time | 10min | 15min | 30min | 45min | 1h |
2h |
3h |
5h |
8h |
10h |
20h |
1.60V | 232.5 | 180.5 | 111.3 | 80.5 | 63.8 |
37.5 |
27.6 |
18.6 |
12.7 |
10.5 |
5.55 |
1.65V | 215.1 | 170.5 | 105.7 | 77.4 | 61.9 |
36.3 |
26.7 |
18.3 |
12.6 |
10.3 |
5.50 |
1.70V | 199.5 | 160.1 | 101.8 | 74.6 | 59.5 |
35.3 |
26.0 |
17.9 |
12.4 |
10.2 |
5.44 |
1.75V | 186.3 | 150.0 | 96.5 | 71.3 | 57.1 |
34.4 |
25.4 |
17.6 |
12.2 |
10.1 |
5.39 |
1.80V | 167.6 | 140.7 | 93.1 | 68.7 | 55.1 |
33.1 |
24.6 |
17.2 |
12.0 |
10.0 |
5.30 |
Discharge Constant Power per Cell (Watts at 25°C)
F.V/Time | 10min | 15min | 30min | 45min | 1h | 2h | 3h |
5h |
8h | 10h | 20h |
1.60V | 418.2 | 345.1 | 211.1 | 152.9 | 122.4 | 71.1 | 52.7 |
35.9 |
24.8 | 20.5 | 10.7 |
1.65V | 391.4 | 330.2 | 201.9 | 147.7 | 119.1 | 69.2 | 51.3 |
35.3 |
24.6 | 20.3 | 10.6 |
1.70V | 366.5 | 307.7 | 193.6 | 143.0 | 115.0 | 67.6 | 50.1 |
34.8 |
24.3 | 20.1 | 10.5 |
1.75V | 344.9 | 288.7 | 184.3 | 137.3 | 110.8 | 66.0 | 49.1 |
34.3 |
24.0 | 19.9 | 10.4 |
1.80V | 312.2 | 271.0 | 176.8 | 132.7 | 107.2 | 63.8 | 47.7 |
33.6 |
23.7 | 19.8 | 10.3 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Component | Positive plate | Negative plate | Container &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar sea |
Features | Thick high Sn low Ca grid with special paste | Balanced Pb-Ca grid for improved recombinati on efficiency | Fire resistance ABS (UL94-V0 optional) | Flame Si-Rubber and aging resistance | Female Copper Insert M6(torque :3~4N.m | Advanced AGM separator for high pressure cell design |
Dilute high purity sulfuric acid | Two layers epoxy resin seal |
