➢ Telecom Control Equipment
➢ UPS systems, Inverter
➢ Power Equipment
➢ Solar & Wind
➢ Emergency Power Systems

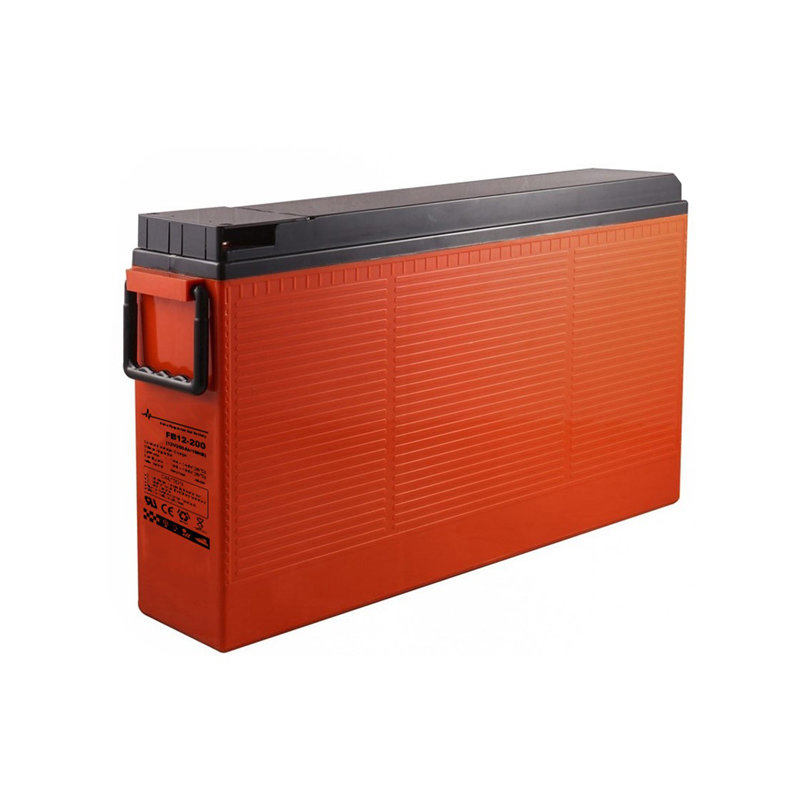

✓ Advanced AGM technology, and Maintenance-free operation;
✓ Front access terminal with standard width for 19” and 23” ETSI racks;
✓ Fire resistance ABS container;
✓ Long float service life 10years;
✓ Low self discharge.
COMPLIED STANDARDS
IEC 60896-21/22
JIS C8704 YD/T799
BS6290 part4
GB/T 19638 CE

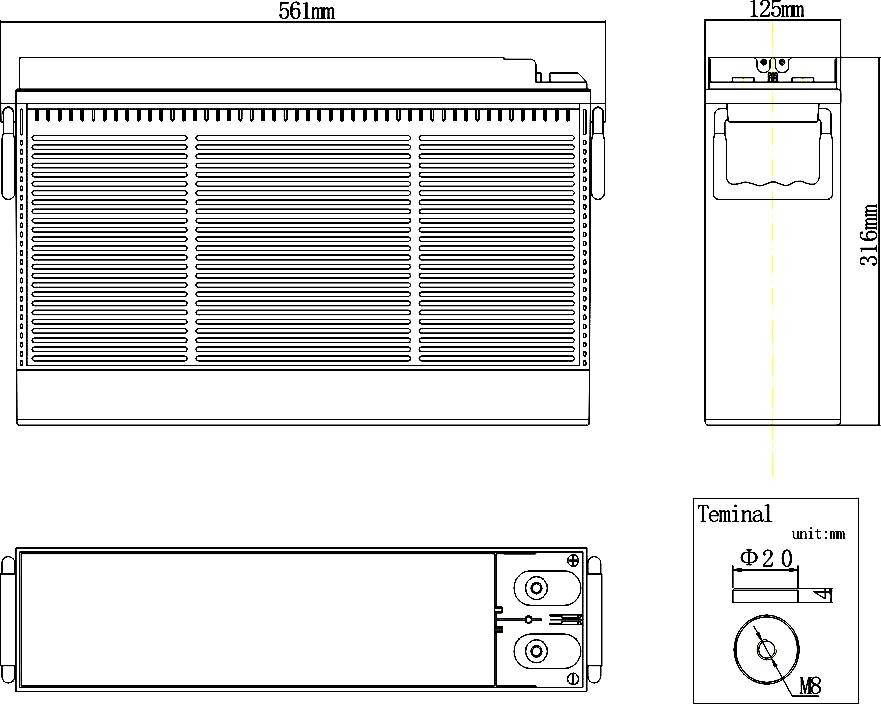

Length(mm) | 560±1 |
Width(mm) | 125±1 |
Height(mm) | 316±1 |
Total Height(mm) | 316±1 |
Weight(kg) | 57.0±3% |
Nominal Voltage | 12V(6 cells per unit) | |||

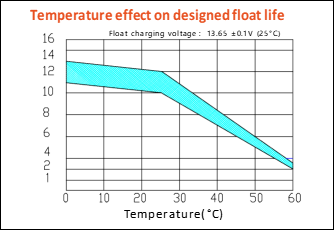

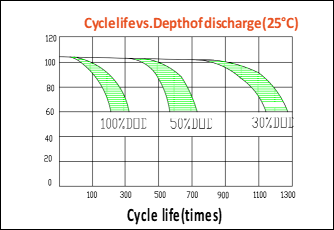

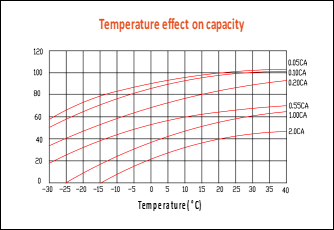

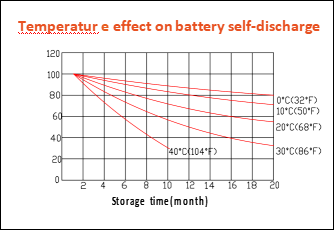

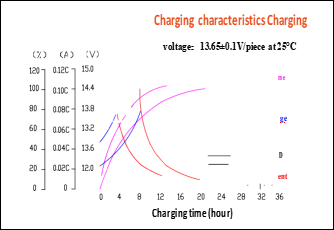

Design Floating Life @25℃ | 10 Years | |||
Nominal Capacity @25℃(10 hour rate@20.0A,10.8V) | 200Ah | |||
Capacity @25℃ | 20hour rate (10.6A,10.8V)5hourrate(35.2A,10.5V) 1hourrate(127.6A,9.6V) | 212Ah176Ah127.6Ah | ||
Internal Resistance | Full Charged Battery@25℃ | ≤3.2mΩ | ||
Ambient Temperature | Discharge ChargeStorage | -15℃~45℃-15℃~45℃-15℃~45℃ | ||
Max.Discharge Current@25℃ | 2000A(5s) | |||
Capacity affected by Temperature(10 hour ) | 40℃25℃0℃-15℃ | 105%100%85%65% | ||
Self-Discharge@25℃ per Month | 3% | |||
Charge (Constant Voltage) @25℃ | Standby Use | Initial Charging Current Less than 50A Voltage 13.6-13.8V | ||
Cycle Use | Initial Charging Current Less than 50AVoltage 14.4-14.9V |

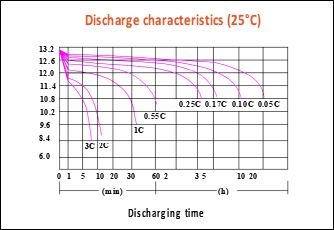

Discharge Constant Current per Cell (Amperes at 25°C)
F.V/Time | 10min | 15min | 30min | 45min | 1h |
2h |
3h |
5h |
8h |
10h |
20h |
1.60V | 465.0 | 361.0 | 216.6 | 161.0 | 127.6 |
75.0 |
55.2 |
37.2 |
25.4 |
21.0 |
11.1 |
1.65V | 430.2 | 341.0 | 209.4 | 154.8 | 123.8 |
72.6 |
53.4 |
36.6 |
25.2 |
20.6 |
11.0 |
1.70V | 399.0 | 320.2 | 203.6 | 149.2 | 119.0 |
70.6 |
52.0 |
35.8 |
24.8 |
20.4 |
10.9 |
1.75V | 372.6 | 300.0 | 193.0 | 142.6 | 114.2 |
68.8 |
50.8 |
35.2 |
24.4 |
20.2 |
10.8 |
1.80V | 335.2 | 281.4 | 186.2 | 137.4 | 110.2 |
66.2 |
49.2 |
34.4 |
24.0 |
20.0 |
10.6 |
Discharge Constant Power per Cell (Watts at 25°C)
F.V/Time | 10min | 15min | 30min | 45min | 1h | 2h | 3h |
5h |
8h | 10h | 20h |
1.60V | 836.4 | 690.2 | 422.2 | 305.8 | 244.8 | 142.2 | 105.4 |
71.8 |
49.6 | 41.0 | 21.4 |
1.65V | 782.8 | 660.4 | 403.8 | 295.4 | 238.2 | 138.4 | 102.6 |
70.6 |
49.2 | 40.6 | 21.2 |
1.70V | 733.0 | 615.4 | 387.2 | 286.0 | 230.0 | 135.2 | 100.2 |
69.6 |
48.6 | 40.2 | 21.0 |
1.75V | 689.8 | 577.4 | 368.6 | 274.6 | 221.6 | 132.0 | 98.2 |
68.6 |
48.0 | 39.8 | 20.8 |
1.80V | 624.4 | 542.0 | 353.6 | 265.4 | 214.4 | 127.6 | 95.4 |
67.2 |
47.4 | 39.6 | 20.6 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Component | Positive plate | Negative plate | Container &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar sea |
Features | Thick high Sn low Ca grid with special paste | Balanced Pb-Ca grid for improved recombinati on efficiency | Fire resistance ABS (UL94-V0 optional) | Flame Si-Rubber and aging resistance | Female Copper Insert M6(torque :3~4N.m | Advanced AGM separator for high pressure cell design |
Dilute high purity sulfuric acid | Two layers epoxy resin seal |
