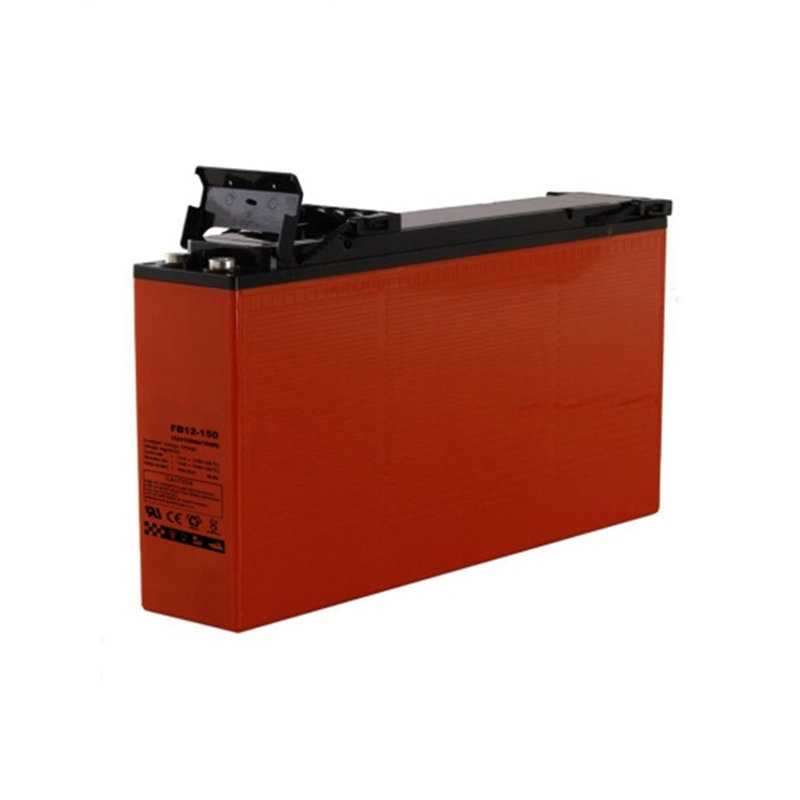

12V 150AH Front Terminal Telecom Lead acid battery
Applications
➢ Telecom Control Equipment
➢ UPS systems, Inverter
➢ Power Equipment
➢ Solar & Wind
➢ Emergency Power Systems
General Features
✓ Advanced AGM technology, and Maintenance-free operation;
✓ Front access terminal with standard width for 19” and 23” ETSI racks;
✓ Fire resistance ABS container;
✓ Long float service life 10years;
✓ Low self discharge <3%.
COMPLIED STANDARDS
IEC 60896-21/22
JIS C8704 YD/T799
BS6290 part4
GB/T 19638 CE

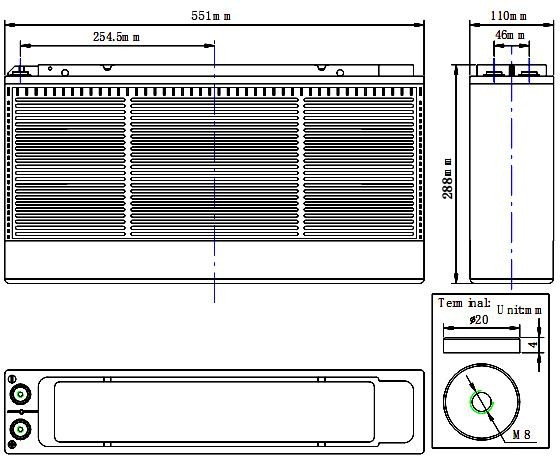

Dimensions & Weight
| Length(mm) | 551±1 |
| Width(mm) | 110±1 |
| Height(mm) | 288±1 |
| Total Height(mm) | 288±1 |
| Weight(kg) | 44.0±3% |
Technical Specifications
| Nominal Voltage | 12V(6 cells per unit) | |||
| Design Floating Life @25℃ | 10 Years | |||
| Nominal Capacity @25℃(10 hour rate@15.0A,10.8V) | 150Ah | |||
| Capacity @25℃ | 20hour rate (7.95A,10.8V)5 hour rate (26.4A,10.5V) 1 hour rate (95.7A,9.6V) | 159Ah132Ah
95.7Ah |
||
| Internal Resistance | Full Charged Battery@25℃ | ≤3.8mΩ | ||
| Ambient Temperature | Discharge ChargeStorage | -15℃~45℃-15℃~45℃
-15℃~45℃ |
||
| Max.Discharge Current@25℃ | 900A(5s) | |||
| Capacity affected by Temperature(10 hour ) | 40℃25℃
0℃ -15℃ |
105%100%
85% 65% |
||
| Self-Discharge@25℃ per Month | 3% | |||
| Charge (Constant Voltage) @25℃ | Standby Use | Initial Charging Current Less than 37.5A Voltage 13.6-13.8V | ||
| Cycle Use | Initial Charging Current Less than 37.5AVoltage 14.4-14.9V | |||
Battery Discharge Table
Discharge Constant Current per Cell (Amperes at 25°C)
| F.V/Time | 10min | 15min | 30min | 45min | 1h |
2h |
3h |
5h |
8h |
10h |
20h |
| 1.60V | 348.8 | 270.8 | 162.5 | 120.8 | 95.7 |
56.3 |
41.4 |
27.9 |
19.1 |
15.8 |
8.33 |
| 1.65V | 322.7 | 255.8 | 157.1 | 116.1 | 92.9 |
54.5 |
40.1 |
27.5 |
18.9 |
15.5 |
8.25 |
| 1.70V | 299.3 | 240.2 | 152.7 | 111.9 | 89.3 |
53.0 |
39.0 |
26.9 |
18.6 |
15.3 |
8.16 |
| 1.75V | 279.5 | 225.0 | 144.8 | 107.0 | 85.7 |
51.6 |
38.1 |
26.4 |
18.3 |
15.2 |
8.09 |
| 1.80V | 251.4 | 211.1 | 139.7 | 103.1 | 82.7 |
49.7 |
36.9 |
25.8 |
18.0 |
15.0 |
7.95 |
Discharge Constant Power per Cell (Watts at 25°C)
| F.V/Time | 10min | 15min | 30min | 45min | 1h | 2h | 3h |
5h |
8h | 10h | 20h |
| 1.60V | 627.3 | 517.7 | 316.7 | 229.4 | 183.6 | 106.7 | 79.1 |
53.9 |
37.2 | 30.8 | 16.1 |
| 1.65V | 587.1 | 495.3 | 302.9 | 221.6 | 178.7 | 103.8 | 77.0 |
53.0 |
36.9 | 30.5 | 15.9 |
| 1.70V | 549.8 | 461.6 | 290.4 | 214.5 | 172.5 | 101.4 | 75.2 |
52.2 |
36.5 | 30.2 | 15.8 |
| 1.75V | 517.4 | 433.1 | 276.5 | 206.0 | 166.2 | 99.0 | 73.7 |
51.5 |
36.0 | 29.9 | 15.6 |
| 1.80V | 468.3 | 406.5 | 265.2 | 199.1 | 160.8 | 95.7 | 71.6 |
50.4 |
35.6 | 29.7 | 15.5 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Battery Construction
| Component | Positive plate | Negative plate | Container &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar sea |
| Features | Thick high Sn low Ca grid with special paste | Balanced Pb-Ca grid for improved recombinati on efficiency | Fire resistance ABS (UL94-V0 optional) | Flame Si-Rubber and aging resistance | Female Copper Insert M6(torque :3~4N.m | Advanced AGM separator for high pressure cell design |
Dilute high purity sulfuric acid | Two layers epoxy resin seal |
