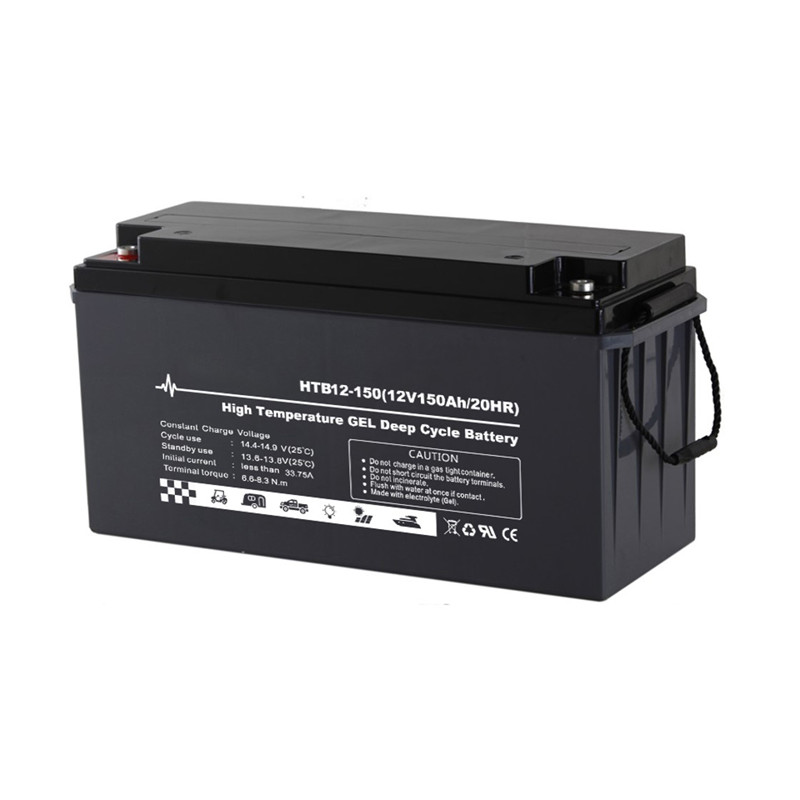

12v 150ah High Temp Deep cycle gel battery
Applications
➢ BTS Stations
➢ Solar & Wind energy system
➢ UPS system
➢ Telecom systems
➢ Wheel chair, Golf Car
General Features
✓Able to operate at 40-60°C ✓ DOD 50% 1500 times Cycles
✓ Integrated design to ensure the best Uniformity and reliability
✓ Long life and high stability under high temp. environment (no air-con needed)
✓ Use super-C additives: Deep discharge recovery capability
IEC 60896-21/22
JIS C8704
IEC61427
BS6290 part4
GB/T 19638
CE/ISO

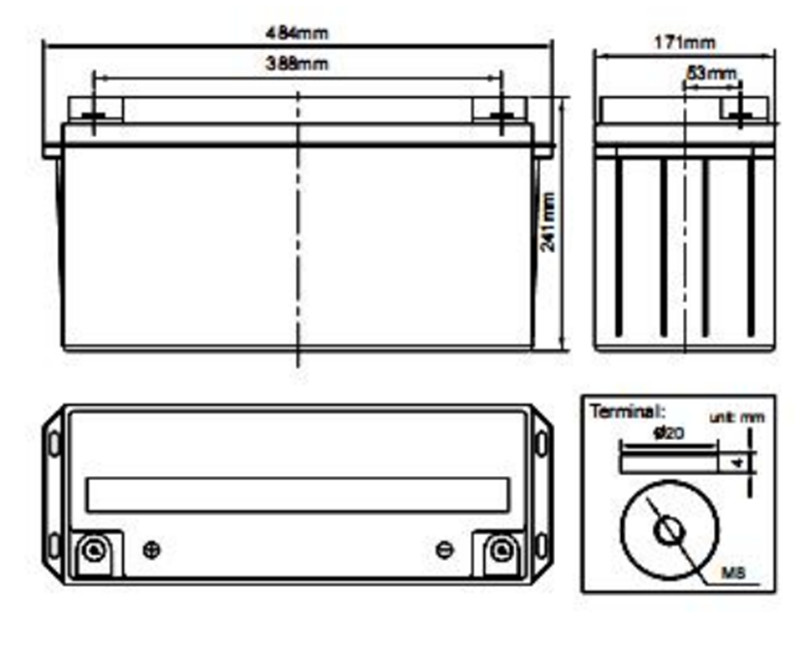

Dimensions & Weight
| Length(mm) | 484±1 |
| Width(mm) | 171±1 |
| Height(mm) | 241±1 |
| Total Height(mm) | 241±1 |
| Weight(kg) | 45.7±3% |
Technical Specifications
|
Nominal Voltage |
12V (6 cells per unit) |
|||
| Design Floating Life @25℃ |
20 Years |
|||
| Nominal Capacity @25℃(20 hour rate@7.5A,10.8V) |
150Ah |
|||
|
Capacity @25℃ |
10hour rate (13.5A,10.8V)
5 hour rate (23.9A,10.5V) 1 hour rate (86.6A,9.6V) |
135Ah 119.5Ah 86.6Ah |
||
| Internal Resistance | Full Charged Battery@25℃ |
≤4.0mΩ |
||
|
Ambient Temperature |
Discharge Charge Storage |
-25℃~60℃
-25℃~60℃ -25℃~60℃ |
||
| Max.Discharge Current@25℃ |
800A(5s) |
|||
|
Capacity affected by Temperature (10 hour ) |
40℃ 25℃ 0℃ -15℃ |
108% 100% 90% 70% |
||
| Self-Discharge@25℃ per Month |
3% |
|||
|
Charge (Constant Voltage) @25℃ |
Standby Use | Initial Charging Current Less than 33.75A Voltage 13.6-13.8V | ||
| Cycle Use |
Initial Charging Current Less than 33.75A Voltage 14.4-14.9V |
|||
Battery Discharge Table
Discharge Constant Current per Cell (Amperes at 25°C)
|
F.V/Time |
15min |
30min |
45min |
1h |
2h |
3h |
5h |
8h |
10h |
20h |
100h |
|
1.60V |
234.3 |
139.4 |
99.0 |
86.6 |
52.9 |
37.1 |
25.2 |
16.7 |
14.9 |
8.10 |
1.80 |
|
1.65V |
230.0 |
136.9 |
97.2 |
85.1 |
51.9 |
36.5 |
24.8 |
16.4 |
14.6 |
7.95 |
1.76 |
|
1.70V |
225.8 |
134.4 |
95.4 |
83.5 |
51.0 |
35.8 |
24.3 |
16.1 |
14.3 |
7.80 |
1.73 |
|
1.75V |
221.5 |
131.8 |
93.6 |
81.9 |
50.0 |
35.1 |
23.9 |
15.8 |
14.0 |
7.65 |
1.70 |
|
1.80V |
213.0 |
126.8 |
90.0 |
78.8 |
48.1 |
33.8 |
23.0 |
15.2 |
13.5 |
7.50 |
1.67 |
Discharge Constant Power per Cell (Watts at 25°C)
|
F.V/Time |
15min |
30min | 45min |
1h |
2h |
3h |
5h |
8h |
10h |
20h |
100h |
|
1.60V |
451.0 |
268.4 | 190.6 |
166.8 |
101.8 |
71.5 |
48.6 |
32.1 |
28.6 |
15.6 |
3.46 |
|
1.65V |
442.8 |
263.5 | 187.1 |
163.7 |
99.9 |
70.2 |
47.7 |
31.5 |
28.1 |
15.3 |
3.40 |
|
1.70V |
434.6 |
258.6 | 183.6 |
160.7 |
98.1 |
68.9 |
46.8 |
30.9 |
27.5 |
15.0 |
3.33 |
|
1.75V |
426.4 |
253.8 | 180.2 |
157.7 |
96.2 |
67.6 |
45.9 |
30.3 |
27.0 |
14.7 |
3.27 |
|
1.80V |
410.0 |
244.0 | 173.3 |
151.6 |
92.5 |
65.0 |
44.2 |
29.2 |
26.0 |
14.4 |
3.21 |
Note: The above data are average values, and can be obtained within 3 charge/discharge cycles. These are not minimum values. Cell and battery designs/specifications are subject to modification without notice. Contact CSBattery for the latest information.
Battery Construction
|
Component |
Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal |
Separator |
Electrolyte |
Pillar seal |
|
Thick high |
Balanced |
Fire |
Flame Si-Rubber and aging resistance |
Advanced |
Two |
|||
|
Sn low Ca |
Pb-Ca grid |
resistanc |
Female |
PVC /AGM |
layers |
|||
|
Features |
grid with |
for improved |
e ABS |
Copper |
separator for |
Silicon Gel |
epoxy |
|
|
special |
recombinati |
(UL94-V0 |
Insert M8 |
high pressure |
resin seal |
|||
|
paste |
on efficiency |
optional) |
cell design |
Add: Building Evolution, Xingdong industry Park, NO.61, Liuxian 2nd Road, Baoan, Shenzhen, China. Tel: +86-755-29123661 Email: Sales@CSBattery.cn, Support@CSBattery.cn
Website: www.CSBattery.cn
