60w 150w 200w 300w good quality solar flood light
1. LED chip has low power consumption and high photoelectric conversion efficiency.
2. Stable battery life, with protection of overcharging and discharging.
| Product Details | ||||
| Model | Power | LED Beads | Battery | IP Grade |
| ZL-TYN-60 | 60W | 156 | 15,000mah | IP65 |
| ZL-TYN-150 | 150W | 308 | 22,000mah | IP65 |
| ZL-TYN-200 | 200W | 308 | 22,000mah | IP65 |
| ZL-TYN-300 | 300W | 308 | 22,000mah | IP65 |
| LED Chip | SMD 2835 |
| Input Voltage | DC12V |
| Luminous Efficiency | ，100 Im/w |
| Beam angle | 60° |
| CRI | Ra N 70 |
| Color Temp | 2700-6500K |
| Battery | Lithium iron phosphate Battery |
| Solar Panel | Polycrystalline silicon solar panel |
| Charge Time | 5-8H |
| IP Grade | IP65 |
| Working Temp. | -25°C 〜+50° C |
| Lifetime | N 30,000 hrs |

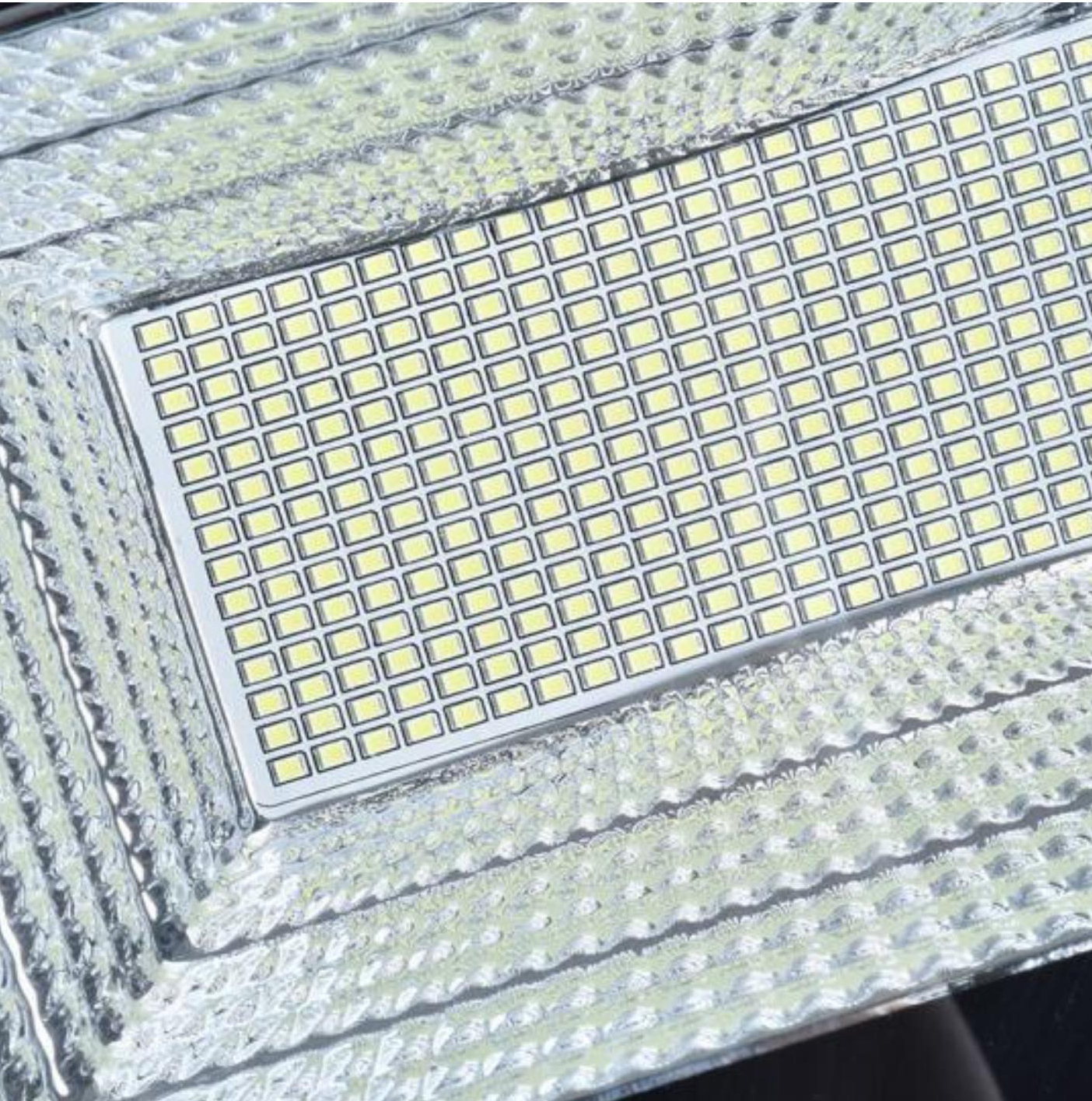

LED Chip
SMD2835, high brightness, low energy consumuption, light decline, ong service.

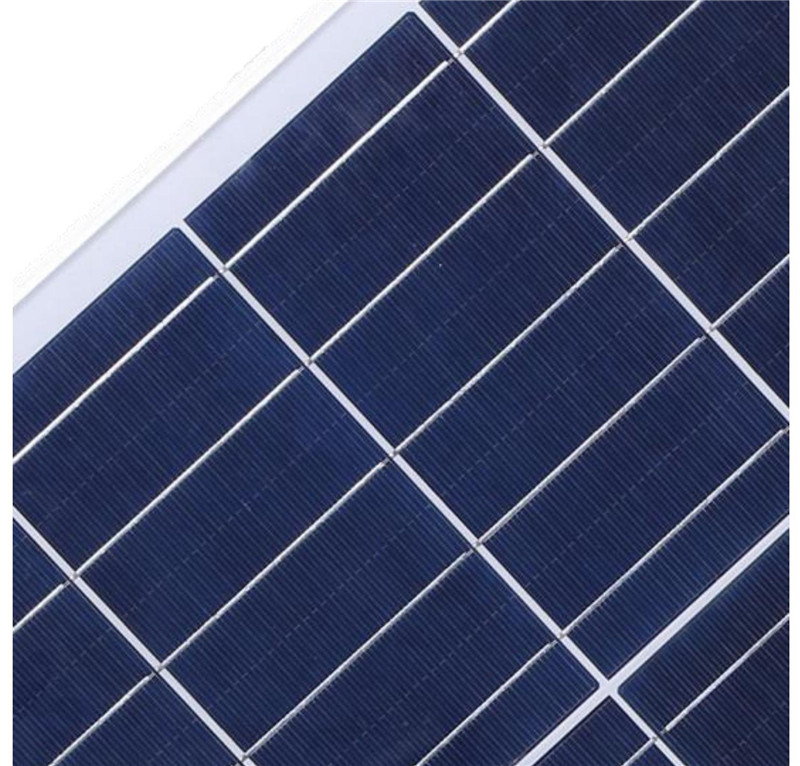

Solar Panel
It adopts class a polycrystalline silicon solar panel, which has higher photoelectric conversion rate and faster charging.

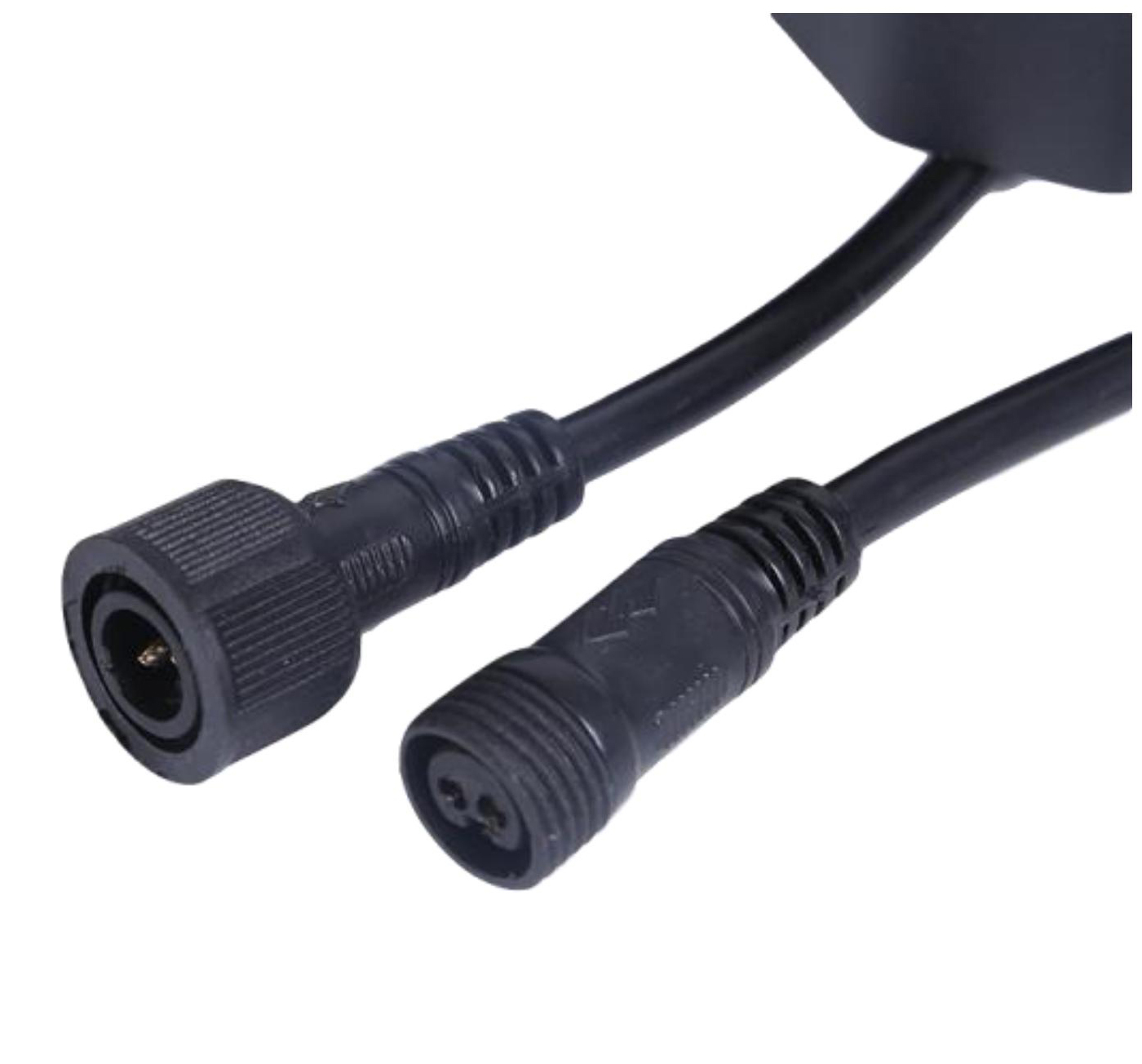

Connection Port
Waterprool conncctior port strengthen anti-lcakage. anti-rain, long service lifc. crIsure line satety.
| Model | Lamp Size | Solar panel Size | Packing Size |
| ZL-TYN-60 | 270*230*85mm | 35035017mm | 59*38*14cm |
| ZL-TYN-150 | 320*275*85mm | 53535017mm | 59*38*14cm |
| ZL-TYN-200 | 320*275*85mm | 530*350*17mm | 59*38*14cm |
| ZL-TYN-300 | 320*275*85mm | 530*350*17mm | 59*38*14cm |
Installation method
First installation requires a photovoltaic panel to be activated. put the product in the sun or use strong to iluminate the panel. after activation, it will enter the automatic mode; it will automatically light up at night.
Application
1. Expressways, highways
2. Major roads, secondary roads
3. Industrial roads, residential roads
